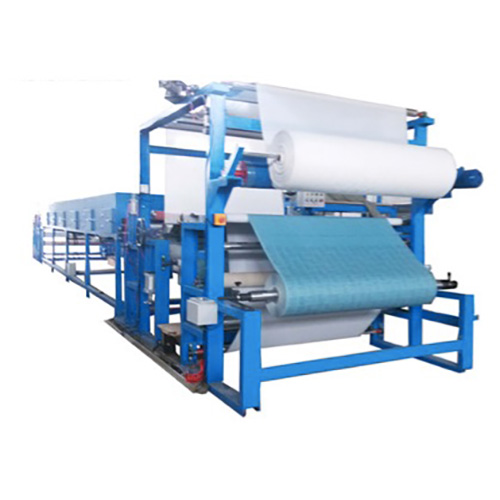

Abrasive Laminating Machine

ABR-LS-1400/ 1650-8S, the abrasive roll laminating machine is designed for velcro laminating on abrasive paper or cloth roll. Suitable for oily glue and water-based glue.

Equipped With

Apply constant tension device & correction device to insure raw material work in tight state & precise position.
Suitable for both oily & water-base glue. Glue coating amount is adjustable.
Oven: Hot air circulation heating system, with temperature controller, no harm on raw material.
Re-laminating device: with flatten rubber roller, keep raw material even without winkle.
Equipped with pneumatic cutting blade, can cut sides if customer need.
Equipped with meter counter, easily manage production
Equipped with pneumatic correcting device, keep raw material run in precise right position.
All pneumatic & electric accessories are famous brand products.

Machine Structure

Unwinding Device for both abrasive roll & velcro fiber roll
Gluing device
Traction press device
Baking oven
Traction laminating device
Printing device
Traction device
Winding device

Technical Data

Machine dimension: 10000mm×2300mm×2500mm
Oven length: 6m, max temperature: 110°C, adjustable
Voltage: 380V/ 50Hz
Effective width: 1400mm/ 1650mm
Laminating speed: 300m/h
Heating method: electric heating method
