Project Description

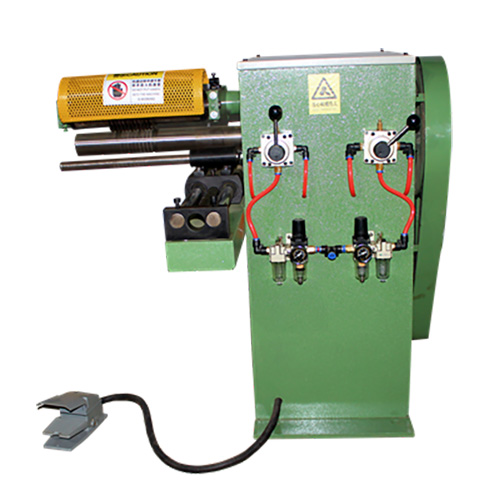

Ultra short sanding belt slitting machine with Precising slitting

This machine is mainly for small belt slitting, with fix knife sets, precise slitting.

Need to change knife sets when slit different size of sanding belt.

2 sizes available.

Technical Data

Max belt width: 300/ 400mm
Minimum belt slitting width: 6mm
Max slitting at one time: 20pcs
Suitable sanding belt length: 260~800mm/ 340~1500mm
Max knife slitting pressure: 550Kgf
Max tension of belt: 180Kgf

Basic Parameters

Power: 0.75KW
Electric supply: 380V, 50HZ
Pneumatic supply: 0.7 Mpa
Dimension: 1000*950*930mm/ 1510*1350*1330mm
Weight: 320KG/ 460KG
