Project Description

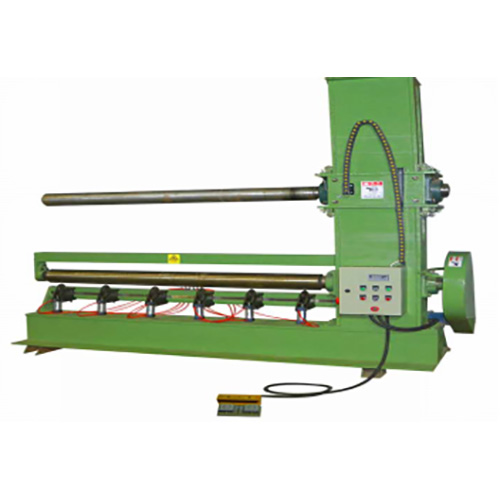

Wide Abrasive Belt Edge Cutting Machine

This machine is designed for wide belt slit into narrower belt, or wide belt useless edge cutting off.

With standard 6 knife set adjustable for slitting.

With a foot switch, easy operation.

Technical Data

Max belt width: 1650mm standard (2000mm is also available)
Minimum slit width: 100mm
Belt length range: 1400mm~3200mm
Max pneumatic knife set with pressure: 500Kgf
Max Tension of belt: 180Kgf
With standard 6 knife sets
Quick adjusting knife holder with pneumatic clamp

Basic Parameters

Power: 2.2KW
Electric supply: 380V/ 3 Phase/ 50HZ
Dimension: 2700*900*2650mm
Weight: 1900KG
