Coated Abrasive cloth Jumbo Roll Converting Slitting Machine

Heavy Duty Coated Abrasive Converting Jumbo Roll Slitting Machine

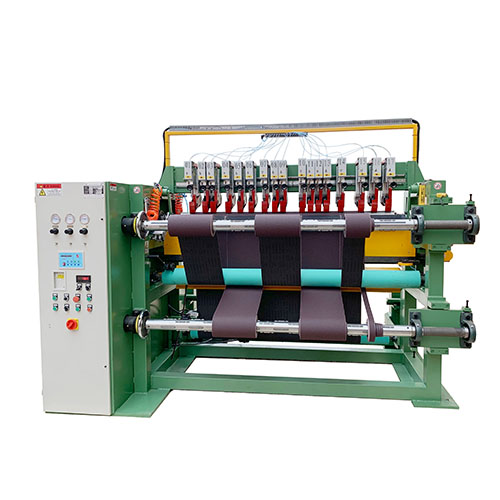

This jumbo roll slitting machine of ABR-DZQ-1650AA is used to slit abrasive cloth/ paper jumbo rolls into narrow rolls.
It’s good for heavy duty abrasive material jumbo rolls, will handle coarse grit, X Y Z weight backing material abrasive rolls slitting easily.
Equipped with latest generation knife sets. The latest knife set is adjusted on rail slider, highly precise and easy operation.

Technical Info

Max abrasive jumbo rolls width: 1650mm (other size can be customized)
Minimum slitting width: 70mm
Max loading weight on unwind shaft: 1T
Max loading abrasive roll diameter: 800mm
Unwind & rewind shaft diameter: 74mm
Max slitting speed: 30m/min (adjustable)
Slitting pressure range: 6-200Kgf (adjustable)
Knife set quantity: 15 sets (standard, more sets can be customized)
Tolerance scope: ±0.5mm
Max rewind tensile: 560N.m
Good for heavy duty X Y Z weight backing coarse grit abrasive rolls slitting
Equipped with latest model pneumatic clamping knife set, with following advantages:
—With rail slider system, high precise
—Higher power
—Advanced design, very easy to adjust
—With steel ruler behind knife set for better measurement
Each unwind & rewind shaft is air expand shaft (clamping air expand shaft can be customized)
Equipped with automatic hydraulic deviation correction system
Equipped with pneumatic clutch, which would make machine have higher power & higher performance
Equipped with cross cutting device, can cut off the slit part from un-slit jumbo roll.
Equipped with micro computer control system, can set required slitting length on machine
Main machine structure is made of high toughness steel, strong & tough, anti-wearing.
