Project Description

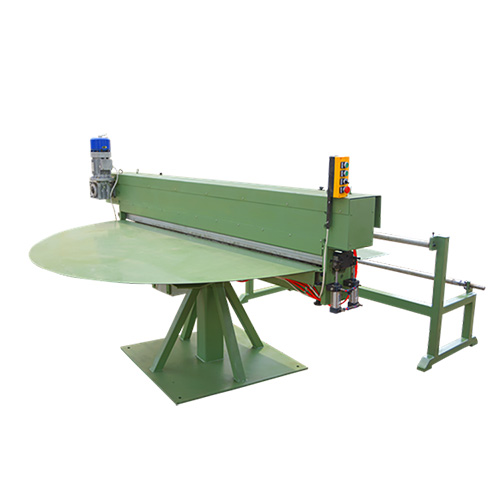

Wide Manual Cut to Length Machine ABR-MSWXL-1650

This cut to length machine ABR-MSWXL-1650 is crush cutting with manual operation, for wide abrasive roll length cutting.
Max cutting width is 1650mm.

Can make straight and wave cutting

Technical Info

Max working width: 1650mm (standard) Other size can be customized.
Cutting method: Crush cutting
cutting angle range:±55°
Cutting way: straight way & wavy cutting
Cutting angle adjust method: manual adjustment (with reference)
Feeding method: labor feeding
Equipped with a simple abrasive roll shaft
With a foot valve, easy operation
Max unwind roll diameter: 600mm
Can slit flexible or sturdy coated abrasive or non-woven material

Basic Parameters

Power: 0.75KW
Electric supply: 380V, 3phase 60Hz
Pneumatic pressure: 0.7Mpa
Dimension:1960*1700*2070mm
Weight: 1000KG

Option Part

A working table which will match with this machine
