Project Description

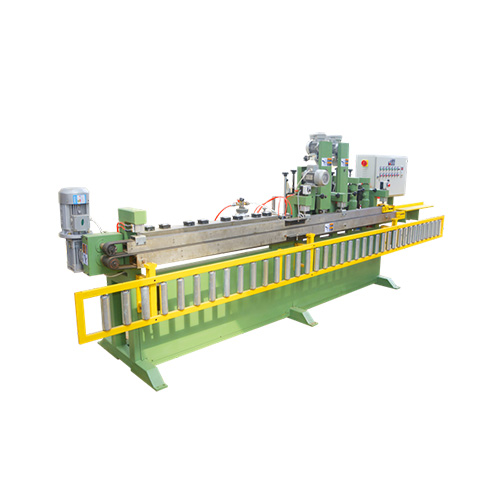

Premium skiving machine with glue coating unit ABR-ASMG-4

Skiving machine ABR-ASMG-4 is designed for abrasive cloth/ paper belt joint preparation which combined joint edge skiving & glue coating.
Continuous working system with conveyor belt.
Suitable for tape joint, or overlap joint.
Scuffing unit can be customized.
New model skiving unit, which is easily adjusted.

Technical Info

Continuous feeding system with a conveyor belt
Max feeding speed of conveyor belt : 10m/min
Fold-able support roller table for hold material
Standard skiving heads:
Clean & strip disc skiving head / Wire brush skiving unit(suitable for both, you can choose)
Opposite diamond cup skiving unit
Paralleled sanding belt skiving unit
45°sanding belt skiving unit
(other type of skiving unit combo can be customized)
All the skiing head are 6-direction flexible adjustable, more precise skiving
Glue coating (spray or roller coating system both available.
Heating oven after glue coating
Heating oven length: 1.5m (other size can be customized)
Heating oven temperature: 60~100℃

Basic Parameters

Power: 4.5KW
Electric supply: 380V, 50HZ
Pneumatic supply: 0.7Mpa
Dimension: 4600*850*1700mm
Weight: 1100KG
